| Place of Origin: | Shandong, China | |
| Condition: | New | |
| Type: | Finger Joint Machine | |
| Brand Name: | CHENGSHUN | |
| Model number | CS-OSB 0398 | |
| Voltage: | 380V/440V/415V | |
| Weight (KG): | 100000 kgs | |
| Applicable Industries: | Manufacturing Plant | |
| Required site area | 15000-30000 square meters | |
| Warranty: | 1 Year | |
| After-sales Service Provided: | Site suopport | |
| Key Selling Points: | Automatic | |
| After Warranty Service: | Video technical support, Online support | |
| Warranty of core components: | 1 Year | |
| Core Components: | Bearing, Motor, Gear, PLC | |
| Product name: | MDF production line | |
| Working methods: | Automatic CNC | |
| Board size: | 1220*2440mm | |
| Working thickness: | 9mm-18mm | |
| Working time: | 24hours | |
| Application: | MDF for packing , lamination , furniture ,cabinent etc | |
| Production capacity | 30000 cbm/ year | Full automatic |
| 100000 cbm/ year & more | Full automatic | |

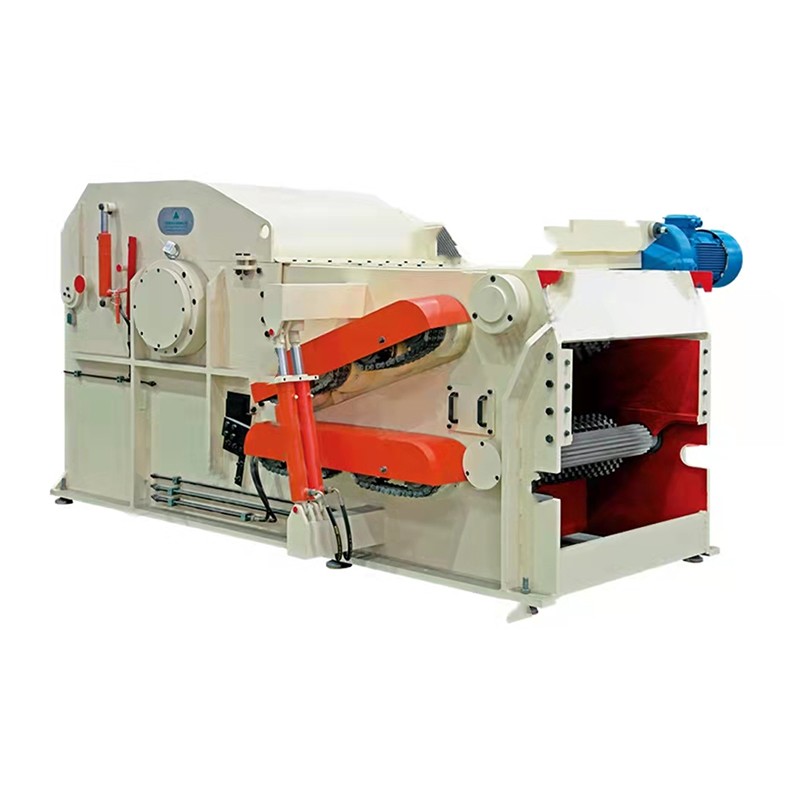

Model | BX218 | BX218D |
Dimension(L×W×H) | 4670×2150×1500mm | 4670×2150×1500mm |
Rotor diameter | 80mm | 80mm |
Number of rotor knives | 2 | 2 |
Feed opening | 225×680mm | 240×750mm |
Processed max diameter | 160mm | 160mm |
Chip length | 30/20mm | 30mm |
Production Capacity | 15-20m³/h | 38 m³/h |
Main motor power | 110kw | 132kw |
Feed roller motor power | 4×2kw | 4×2kw |
Pump motor power | 0.55kw | 0.55kw |
Machine net weight | 7000kg | 7500kg |
Refiner | 1750KW |
Fiber Dryer | 137KW |
Fiber dryer （drying duct） | |
Fiber dryer （separator） |
Forming machine | 33.8KW |
Continuous pre –press | 30KW |

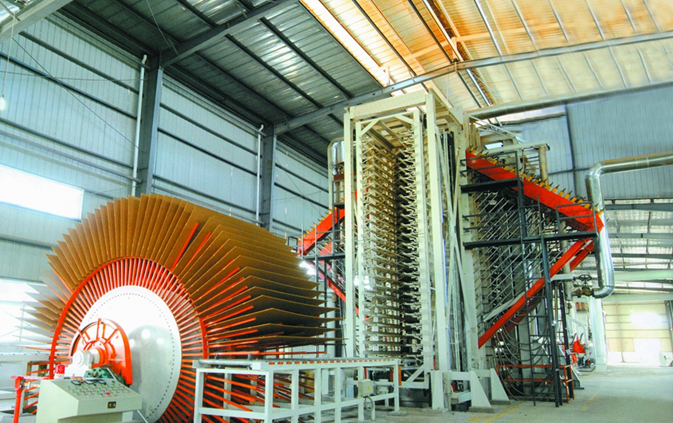

Hot press machin | 15-28 layer (according to the productivity) |
Longitudinal saw | 25KW |
In-feed conveyor for transversal saw | 2KW |
Transversal saw | 25KW |
| Out-feed conveyor for transversal saw | 2KW |
