| Quick Details | ||
| Place of Origin: | Shandong, China | |
| Condition: | New | |
| Type: | Finger Joint Machine | |
| Brand Name: | CHENGSHUN | |
| Model number | CS-PB0368 | |
| Voltage: | 380V/440V/415V | |
| Weight (KG): | 100000 kgs | |
| Applicable Industries: | Manufacturing Plant | |
| Required site area | 15000-30000 square meters | |
| Warranty: | 1 Year | |
| After-sales Service Provided: | Site suopport | |
| Key Selling Points: | Automatic | |
| After Warranty Service: | Video technical support, Online support | |
| Warranty of core components: | 1 Year | |
| Core Components: | Bearing, Motor, Gear, PLC | |
| Product name: | Particle machine line | |
| Other name: | Chip board production line | |
| Working methods: | Automatic CNC | |
| Board size: | 4*8 | |
| Working thickness: | 6mm-25mm | |
| Working time: | 24hours | |
| Application: | Laminate for furniture making | |
| Project | Production capacity | Automatic degree |

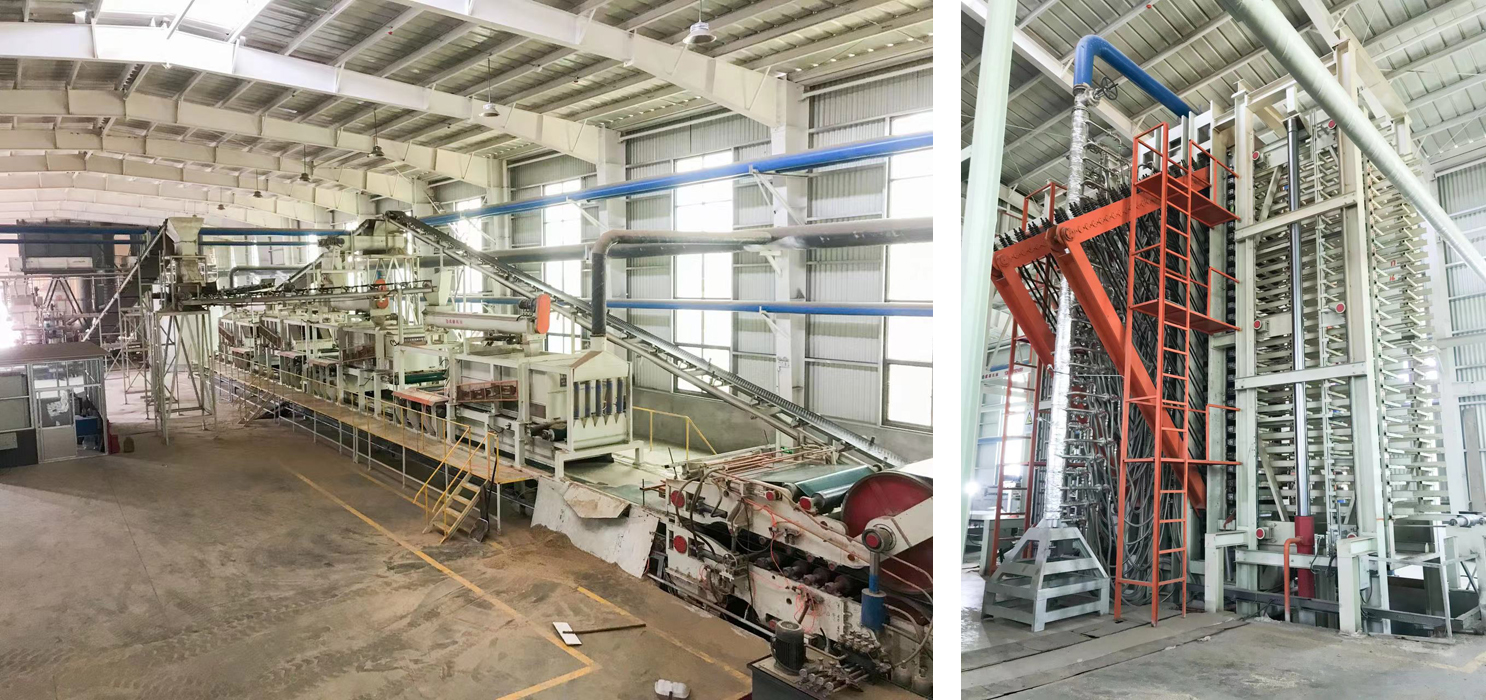

| Particle board production line | 10000-15000 cbm/ year | Semi-Auto & Full automatic |
| Board size :4×8ft ;6×9ft | 30000 cbm/ year | Full automatic |
| Thickness :6-40mm | 80000 cbm/ year & more | Full automatic |

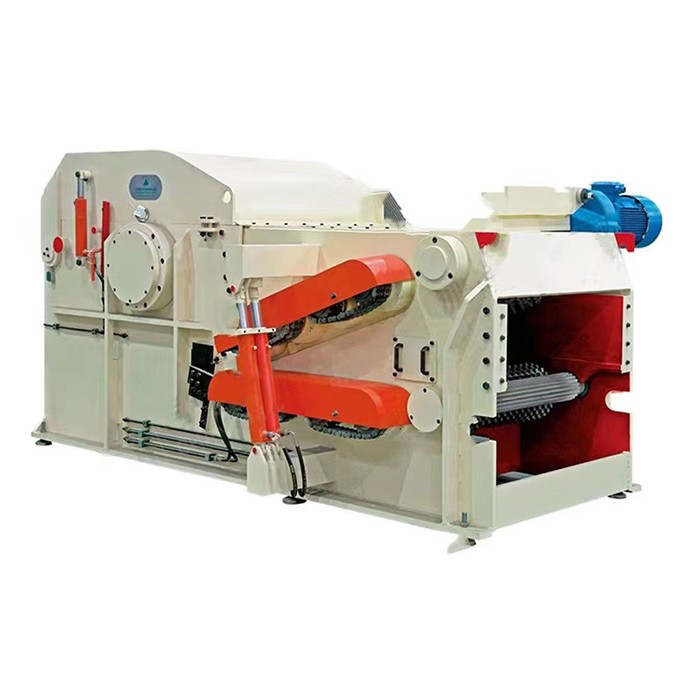

Drum chpper | ||
Model | BX218 | BX218D |
Dimension(L×W×H) | 4670×2150×1500mm | 4670×2150×1500mm |
Rotor diameter | 80mm | 80mm |
Number of rotor knives | 2 | 2 |
Feed opening | 225×680mm | 240×750mm |
Processed max diameter | 160mm | 160mm |
Chip length | 30/20mm | 30mm |
Production Capacity | 15-20m³/h | 38 m³/h |
Main motor power | 110kw | 132kw |
Feed roller motor power | 4×2kw | 4×2kw |
Pump motor power | 0.55kw | 0.55kw |
Machine net weight | 7000kg | 7500kg |
|
Knife Ring Flaker |
BX468 |
BX4612 |
|
Knife ring diameter（mm） |
800 |
1200 |
|
No.of knives（pieces） |
28 |
42 |
|
Length of knife（mm） |
300 |
375 |
|
Partile thickness（mm） |
0.4－0.7 |
0.4－0.7 |
|
Knife ring rotating speed（r/min） |
50 |
50 |
|
Impeller rotating speed（r/min） |
1450 |
935 |
|
Production capacity（Kg/h） |
1500－2000 |
3000 |
|
Power of main motor（Kw） |
132 |
200 |
|
Weight（Kg） |
6363 |
8500 |
|
Dimension（L×W×H）（mm） |
3130×2512×2380 |
3443×2753×2840 |

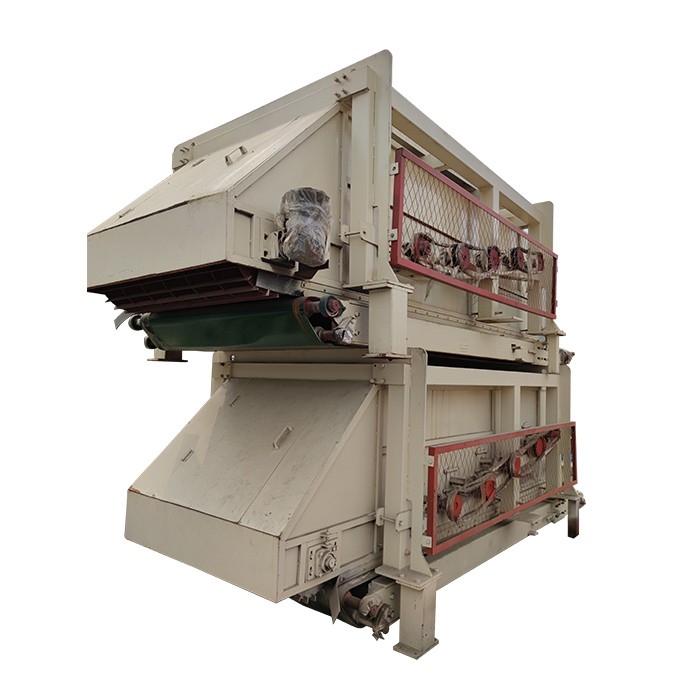

Diamond Roller 2 head Forming Machine | |
Surface forming head | 1pcs |
Core forming head | 1pcs |
Forming width | 1320mm |
Forming thickness | 30 ~ 120 mm |
Accessory parts | bearings imported from Japan, Electrical : Simens |
Diamond Roller 2 head Forming Machine | |
Surface forming head | 1pcs |
Core forming head | 1pcs |
Forming width | 1320mm |
Forming thickness | 30 ~ 120 mm |
Accessory parts | bearings imported from Japan, Electrical : Simens |

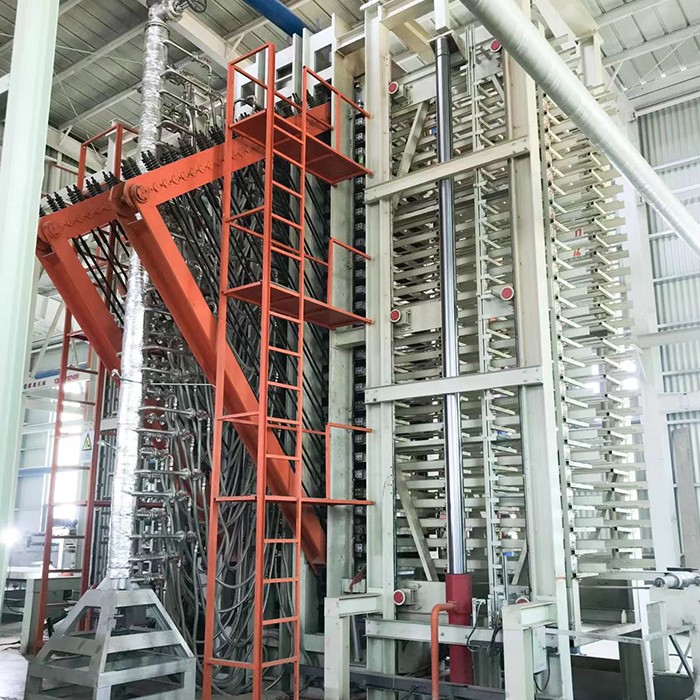

Hot press machine | |
Total pressure | 12000KN |
Layer | 12-21 layers |
Cylinder stroke | 2200mm |
Hot platen space | 120mm |
Hot platen size | 2600*1600*120 |
Cylinder diameter x no. | φ320mm×6*2550 |
Heat medium | Thermal oil |
Shaving machine | |
Model No. | 12 Sqaure meters |

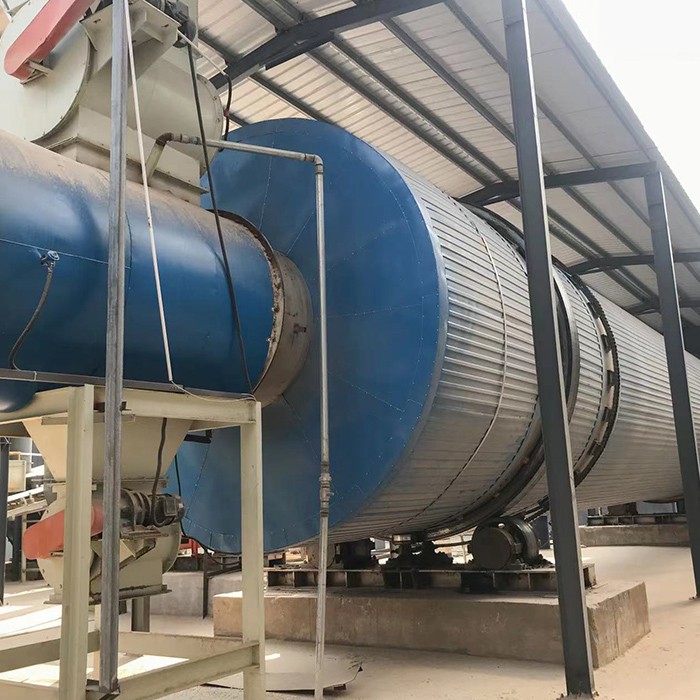

Thermal oil dryer | |
Diameter | 3000mm-4200mm |
Initial water moisture | 15～20% |
Final water moisture | ≤6% |
Heat medium | Thermal oil |
Roller rotary speed | 3-11 r/min |
